Twin Turbo Rebuild Repair Kit FOR E60 E61 E89 E90 E91 E92 E93 135i 335i TD03 N54

$339.95

TD03 Billet Twin Turbo Compressor Wheel 6+6 Upgrade w/ Turbocharger Rebuild Kits FITS
BMW 135i 335i 335Xi 335is 535i 535Xi X5 X6 N54 Twin Turbo



Fitment Guide:

FITS  1 Series
• FITS 2008-2010 E82 Coupe 135i N54 Twin Turbo 3.0L
• FITS 2008-2010 E88 Convertible 135i N54 Twin Turbo 3.0L
• FITS 2011 E82 1M Twin Turbo 3.0L

FITS 3 Series
• FITS 2006-2010 E90 Sedan 335i/xi N54 Twin Turbo 3.0L
• FITS 2006-2010 E91 Touring 335i/xi N54 Twin Turbo 3.0L
• FITS 2006-2010 E92 Coupe 335i/xi N54 Twin Turbo 3.0L
• FITS 2006-2010 E93 Convertible 335i/xi N54 Twin Turbo 3.0L
• FITS 2011-2013 E92 Coupe 335is N54 Twin Turbo 3.0L

FITS 5 Series
• FITS 2008-2009 E60 Sedan 535i/xi N54 Twin Turbo 3.0L
• FITS 2008-2009 E61 Touring 535i/xi N54 Twin Turbo 3.0L

FITS Z Series
• FITS 2009-2016 E89 Z4 sDrive35i N54 Twin Turbo 3.0L
FITS 2010-2016 E89 Z4 sDrive35is N54 Twin Turbo 3.0L

FITS X6
FITS 2008-2010 E71 xDrive35i Twin Turbo 3.0L





Specs:

Additional 50+ HP
10-15% Higher flow over OEM compressor wheels
20 grams lighter for faster Spooling Times

Hi FLow Billet Compressor 6+6 Wheel Spec

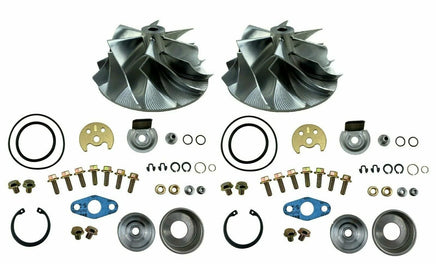

Package Contents:

Billet 6+6 Hi Flow Compressor Wheel
Thrust Collar and Spacer
Brass Thrust Bearing
Oil deflector
Compressor Housing Oring
Seal Plate Oring
Journal Bearings
Snap ring for Seal Plate
Front Seal and Rear Seal
Heat shield
Compressor nut
Spiral bearing clips
Gasket





Blade Dimension

Blades: 6+6 (2x Forward Rotation)

Inducer: 35.6mm

Exducer: Base 46.0mm Extended Tip 49.6mm

Blade Height: 19.1mm

Bore: 4.00mm





Cross Reference Part Numbers:

FITS NP-N54BWKIT, 49131-07005, 49131-07006, 49131-07007, 49131-07008

49131-07009, 49131-07016, 49131-07025, 49131-07026,49131-07030, 49131-07040
