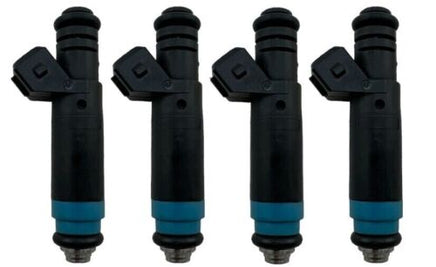

4 Pcs 835cc 80lb FITS Siemens Deka EV1 Fuel Injectors VW Audi A4 Passat 1.8T E85 M3 Z3 318i Talon Eclipse Mustang
Fitment Guide:
These High Impedance (Approx. 12 OHMS) Saturated injectors will fit all of the following models:
1997-2000 Audi A4 / A4 Quatrro 1.8L, 1.8T
1992-1998 BMW 318i
1992-1996 BMW 318is
1995-1999 BMW 318ti
1988-1991 BMW M3
1996-1998 BMW Z3
1997-2000 Chrysler Cirrus 2.0L, 2.4L
1995-1999 Chrysler Sebring 2.0L, 2.4L
1995-2000 Dodge Avenger 2.0L, 2.4L
1995-1999 Dodge Neon Non-Turbo
1997-2000 Dodge Stratus 2.0L, 2.4L
1995-1998 Eagle Talon Non-Turbo
2000-2004 Ford Focus
2005-2012 Ford Focus ( Requires EV1 plug with pigtail clips )
1984-1993 Ford Mustang 4 cylinder models
1995-1999 Mitsubishi Eclipse RS, GS Non-Turbo
1997-2000 Plymouth Breeze 2.0L, 2.4L
1998-2000 VW Passat 1.8L, 1.8T
Any Audi or VW 1.8 or 1.8T Engine
Any BMW E30, S14, M10 or other 4 cylinder engine with Bosch EV1 style injectors.
Any Ford 2.3 or 2.3T Engine, 1984-1993
Any Ford 4 Cylinder Engine with Bosch EV1 or EV6 style injectors
Any Lancia Delta Integrale including: HF, 4WD, Turbo, 8V, 16V, Evo, Evo1, Evo2, HF4WD
Any Chrysler/Dodge/Plymouth 2.0L DOHC Non-Turbo 420a Engine VIN Y
Any Chrysler/Dodge/Plymouth 2.4L DOHC VIN X
· THESE HIGH PERFORMANCE INJECTORS WILL REQUIRE ECU TUNING
· INJECTOR CLIPS MAY BE REQUIRED FOR SOME MODELS
Fast & Free Shipping: USA & Canada
Competitive Worldwide Shipping Rates
Package Contents:
(4) Aftermarket Fuel Injectors - Set of 4
( 2 PIN ) EV1 Connector Plug Type
Specs:
Quantity: 4 Fuel Injectors
Design: Bosch GEN III EV1 Style Fuel Injector
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Orifice Type: 1 hole
Connector Type: Bosch EV1
Filter Design: Basket filter design at inlet
Fuel Delivery: Single Nozzle Cone Shape
Spray Pattern: 15 Degree Spray Cone
Technical Data
Coil Resistance: 12 Ohms / High Impedance
Static Flow Rate : 80 lb/hr = 835 cc/min at 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time 1.14ms at 14VDC
Turn off time: 0.85ms at 600KPa
Voltage: 8-15 Volts, nominal 13.5 Volts
Amperage: 1.0 Amps
Pressure: Min 30PSIG / Max 100PSIG
Variance:3%
Warranty: 1 Years
Mechanical Data
Overall Length: 2 7/8 inches, 74 mm
O-ring to O-ring Length: 2 1/2 inches, 63 mm
Diameter: 16 mm
Orings: Top and bottom, 14.5 mm
Professional Installation is Highly Recommended (No Instructions Included)
Cross Reference Part Numbers:
109991, 110324, FI114991, FI114992, NP-4992INJ-1
